DX8100 DVR not connecting to Bosch Autodome II HELP!!!!

[williamherreratx 0]

I have a Pelco DX8100 and can not for the life of me get the DVR to connect to the Camera. When I connect the video, I can see that, but I can not get the RX/TX setup to control the settings and PTZ controls.





I've tried:



Config #1

DVR (Pin 8 rx+) to Camera (TXD)

DVR (Pin 2 tx-) to Camera (RXD)



Config #2

DVR (Pin 8 rx+) to Camera (RXD)

DVR (Pin 2 tx-) to Camera (TXD)



DX8100 Port Configuration:

Select Device (PELCO-D)

PELCO-D Protocol Version: 1.001.0001

Interface Mode: RS485

Baud Rate: 2400

Parity: None

Data Bits: 8 bits

Stop Bits: 1 bits



Can anyone help?

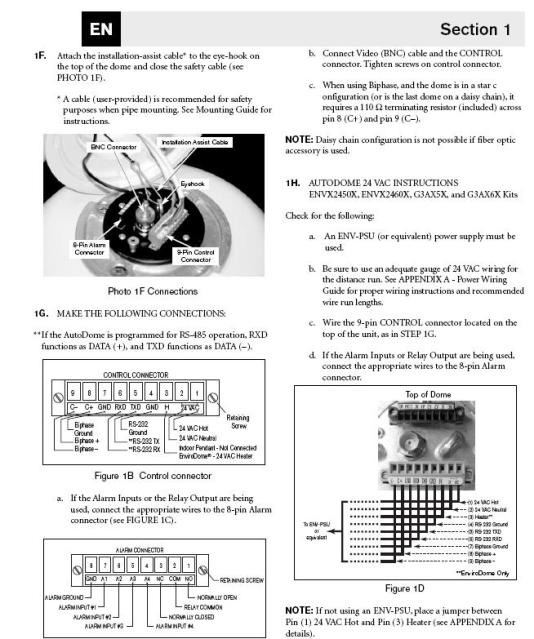

BOSCH Autodome Setup Manual

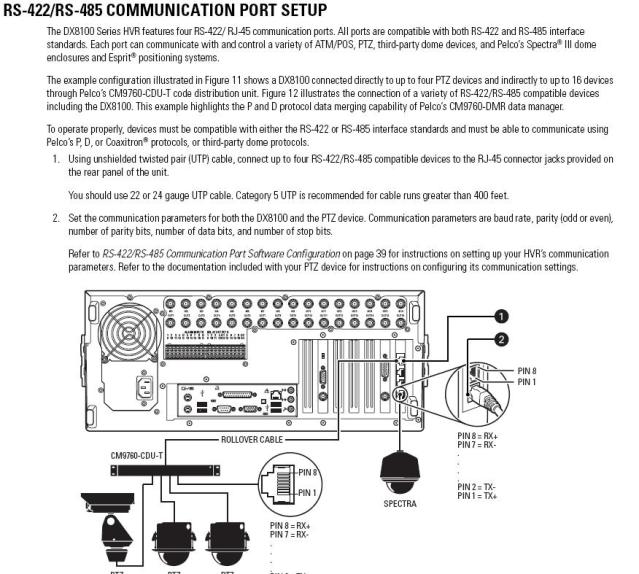

PELCO DX8100 Stetup Manual





Thanks,



William
